📘 Documentation website:
https://bccdc-phsa.github.io/ViroReportR/
The goal of ViroReportR is to provide a toolbox to conveniently generate short-term forecasts (with accompanied diagnostics) for viral respiratory diseases.
Installation
CRAN (recommended)
Install the released version from CRAN:
install.packages("ViroReportR")You can then install the development version of ViroReportR from GitHub with:
devtools::install_github("BCCDC-PHSA/ViroReportR")Quick Start
ViroReportR can be used to generate short-term forecasts with accompanied diagnostics in a few lines of code. We go through an example here where the EpiEstim backend is used to generate forecasts of Influenza-A, RSV and SARS-CoV-2.
library(ViroReportR)
library(tidyverse)
#> ── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
#> ✔ dplyr 1.1.4 ✔ readr 2.1.5
#> ✔ forcats 1.0.0 ✔ stringr 1.6.0
#> ✔ ggplot2 4.0.0 ✔ tibble 3.2.1
#> ✔ lubridate 1.9.4 ✔ tidyr 1.3.1
#> ✔ purrr 1.0.2
#> ── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
#> ✖ dplyr::filter() masks stats::filter()
#> ✖ dplyr::lag() masks stats::lag()
#> ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
library(ggplot2)
library(here)
#> here() starts at C:/Users/rebeca.falcao/ViroReportR
library(DT)
library(purrr)
library(kableExtra)
#>
#> Attaching package: 'kableExtra'
#>
#> The following object is masked from 'package:dplyr':
#>
#> group_rowsWe will use simulate_data to simulate date for Influenza A, RSV, and SARS-CoV-2, which is included with the ViroReportR package. We then pivot the simulated data to transform into a dataset with three columns: date, disease_type and confirm in accordance to format accepted by the model fitting functions.
diseases<-c("flu_a", "rsv", "sars_cov2")
data <- simulate_data(days=365, #days spanning simulation
peaks = c("flu_a"=90,"rsv"=110,"sars_cov2"=160), #peak day for each disease
amplitudes=c("flu_a"=50,"rsv"=40,"sars_cov2"=20), #amplitude of peak for each disease
scales = c("flu_a"=-0.004,"rsv"=-0.005,"sars_cov2"=-0.001), # spread of peak for each disease
time_offset = 0, #number of days to offset start of simulation
noise_sd = 5, #noise term
start_date = "2024-01-07" #starting day (Sunday)
)
data$date <- lubridate::ymd(data$date)
vri_data_list <- map2(rep(list(data), length(diseases)),
diseases,~ get_aggregated_data(.x, "date", .y)) %>% set_names(diseases)
head(vri_data_list)
#> $flu_a
#> # A tibble: 366 × 2
#> date confirm
#> <date> <dbl>
#> 1 2024-01-07 1
#> 2 2024-01-08 0
#> 3 2024-01-09 3
#> 4 2024-01-10 3
#> 5 2024-01-11 0
#> 6 2024-01-12 0
#> 7 2024-01-13 6
#> 8 2024-01-14 0
#> 9 2024-01-15 0
#> 10 2024-01-16 1
#> # ℹ 356 more rows
#>
#> $rsv
#> # A tibble: 366 × 2
#> date confirm
#> <date> <dbl>
#> 1 2024-01-07 0
#> 2 2024-01-08 5
#> 3 2024-01-09 0
#> 4 2024-01-10 0
#> 5 2024-01-11 0
#> 6 2024-01-12 0
#> 7 2024-01-13 6
#> 8 2024-01-14 8
#> 9 2024-01-15 0
#> 10 2024-01-16 0
#> # ℹ 356 more rows
#>
#> $sars_cov2
#> # A tibble: 366 × 2
#> date confirm
#> <date> <dbl>
#> 1 2024-01-07 0
#> 2 2024-01-08 2
#> 3 2024-01-09 0
#> 4 2024-01-10 4
#> 5 2024-01-11 1
#> 6 2024-01-12 1
#> 7 2024-01-13 3
#> 8 2024-01-14 4
#> 9 2024-01-15 0
#> 10 2024-01-16 2
#> # ℹ 356 more rowsModel fitting and forecasting
The code below estimates the reproduction number using EpiEstim through the generate_forecast() function for each disease type via the purrr::map2() function. The generate_forecast() function prepares the data, estimates the reproduction number, and produces short-term forecasts of daily confirmed cases for an n_days forecast horizon. The other current choice for the forecasting algorithm is EpiFilter (WIP).
# parameters set-up
start_date <- min(data$date) + 13
n_days <- 14 # number of days ahead to forecast (n_days)
smooth <- FALSE # logical indicating whether smoothing should be applied in the forecast
forecasts_results <- tibble(
vri_data_list,
forecasts = map2(
vri_data_list,
diseases,
~ generate_forecast(
data = .x,
smooth_data = smooth,
type = .y,
n_days = n_days,
start_date = start_date
)
)
)
names(forecasts_results$forecasts) <- diseases
names(forecasts_results$vri_data_list) <- diseasesPlotting results

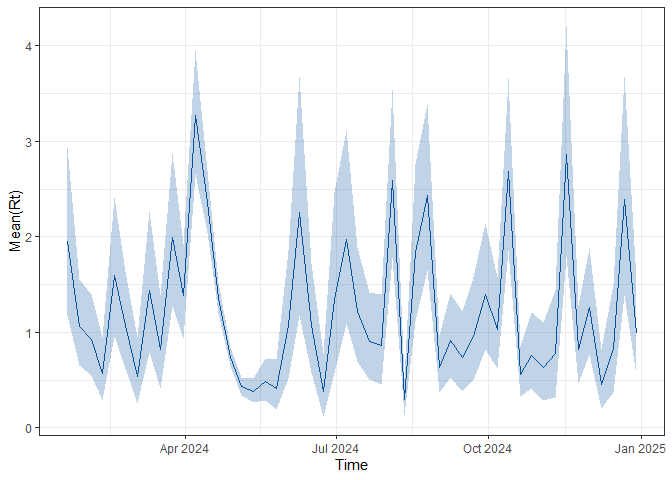

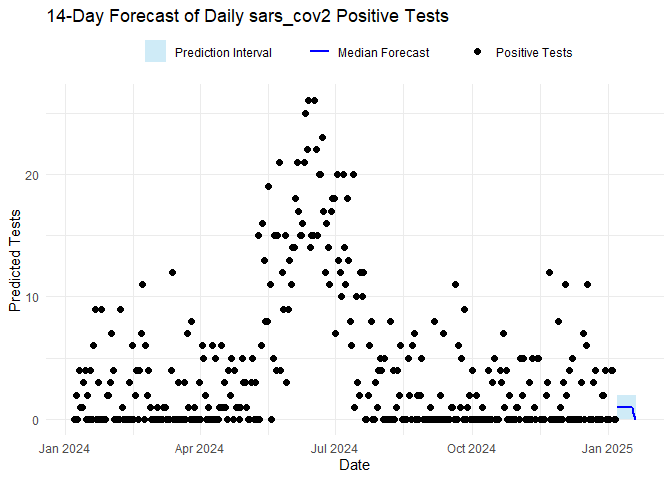

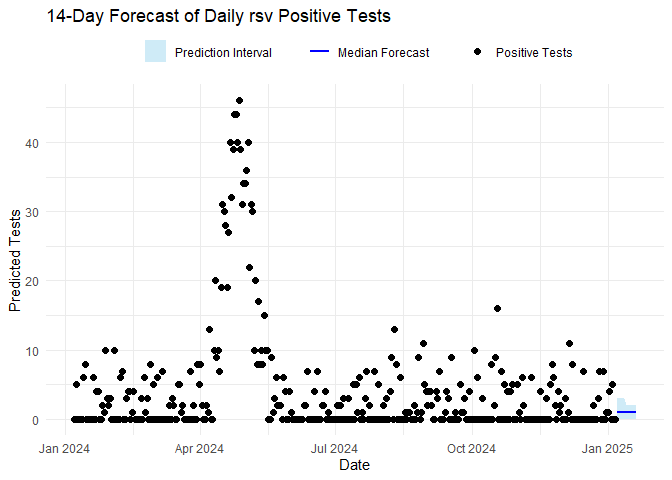

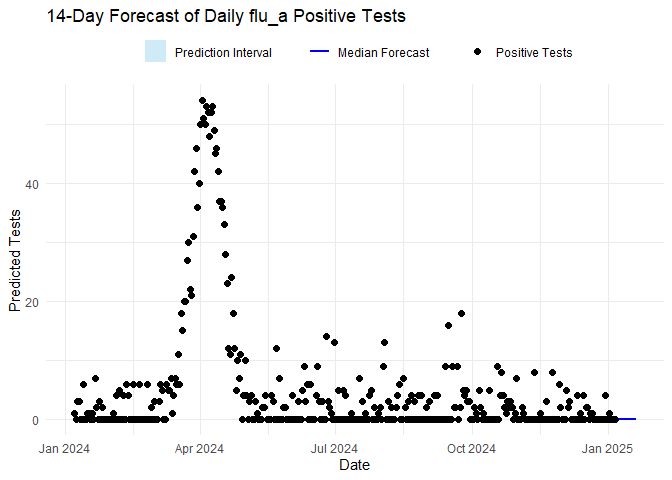

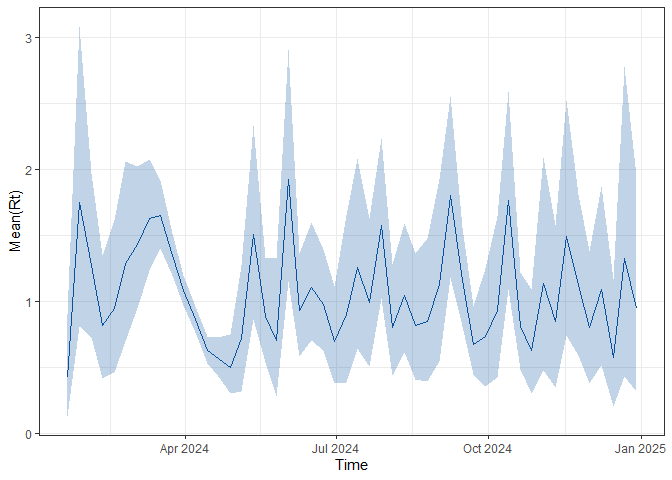

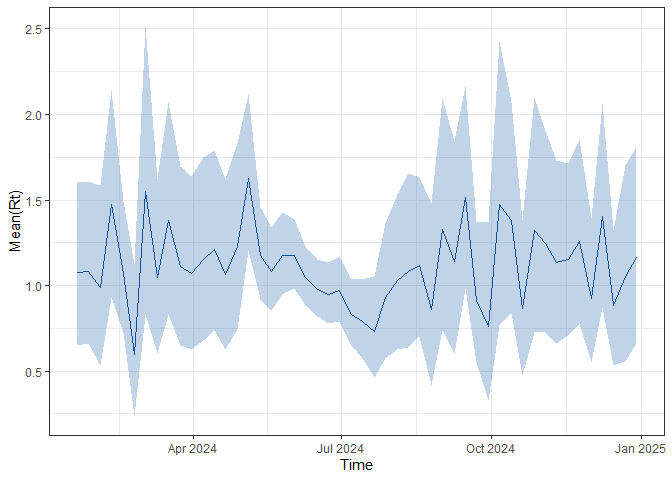

The code below plots the forecasts results and the estimated for each disease. To plot , the code below uses plot_rt function included in the package.
for (vri in diseases) {
forecast_plot <- ggplot() +
geom_ribbon(
data = forecasts_results$forecasts[[vri]][["forecast_res_quantiles"]],
aes(x = date, ymin = p10, ymax = p90, fill = "Prediction Interval"),
alpha = 0.4
) +
geom_line(
data = forecasts_results$forecasts[[vri]][["forecast_res_quantiles"]],
aes(x = date, y = p50, color = "Median Forecast"),
linewidth = 1
) +
geom_point(
data = forecasts_results$vri_data_list[[vri]],
aes(x = date, y = confirm, shape = "Positive Tests"),
size = 2,
color = "black"
) +
labs(
title = paste0(n_days, "-Day Forecast of Daily ", vri, " Positive Tests"),
x = "Date", y = "Predicted Tests",
fill = "", color = "", shape = ""
) +
scale_fill_manual(values = c("Prediction Interval" = "skyblue")) +
scale_color_manual(values = c("Median Forecast" = "blue")) +
scale_shape_manual(values = c("Positive Tests" = 16)) +
theme_minimal() +
theme(legend.position = "top", legend.direction = "horizontal")
# create Rt plot
rt_plot <- ViroReportR:::plot_rt(forecasts_results$forecasts[[vri]])
print(forecast_plot)
print(rt_plot)
}
Forecast report
Finally, the ViroReportR package can generate an automated report for the current season across all supported respiratory viruses (Influenza A, RSV, and SARS-CoV-2) using the generate_forecast_report() function. This function renders an HTML report summarizing model outputs and forecasts.
To use it, provide an input file (input_file) containing the required data with three columns—date, disease_type, and confirm—and specify an output directory (output_directory) where the report will be saved.
# rendering forecast report
df <- imap_dfr(vri_data_list, ~ .x %>% mutate(disease_type = .y))
input_file<-"simulated_data.csv"
write.csv(df, input_file, row.names = FALSE)
generate_forecast_report(
input_data_dir = input_file, # input filepath
output_dir = output_directory, # output directory
n_days = 14, # number of days to forecast
validate_window_size = 7, # number of days between each validation window
smooth = FALSE, # logical indicating whether smoothing should be applied in the forecast
)
